So we use CAMWorks, but only have 1 seat. Sometimes in a pinch i need to used Fusion 360, which I do not mind, its fairly simple and tool paths are decent, especially for the price, However, could someone explain to me how Fusion will not let me model & cam NPT threads but has BSP, GB, ISO METRIC & JIS Pipe threads? I can quick code the NPT right in the control, so I guess its not a REAL problem but the fact that it is not within fusion just blows my mind. Rant end.
Largest Manufacturing Technology Community on the Web
Stay Connected:
FUSION 360 NPT THREADS
- Thread starter Micmac1
- Start date
- Replies 6
- Views 348
not the perfect way to do it, but very possible
forums.autodesk.com
Taper Threadmilling
I was wondering if there is any capability in Fusion 360 CAM to threadmill a tapered thread. We have some parts that have larger NPT threads that we threadmill but I do not see that as an option. Am I missing something? Thanks, RMS Machine
forums.autodesk.com
DavidScott
Titanium
- Joined
- Jul 11, 2012
- Location
- Washington
Not being able to model tapered threads in Fusion has been a complaint since the first year it was available. Supposedly the taper is totally incompatible with the code that does threads. You also can't do custom threads. My fix is to insert tapered plugs where I want the hole, boolean cut, then threadmill the hole. Once you have the tapered hole the rest is automatic.
JP Machining
Stainless
- Joined
- Jul 15, 2006
- Location
- Wisconsin
It does them just fine for holes.
Sketch points where you want the holes
-Create hole
-Hole Tap type = Taper tapped
-Thread type = NPT or whatever else.

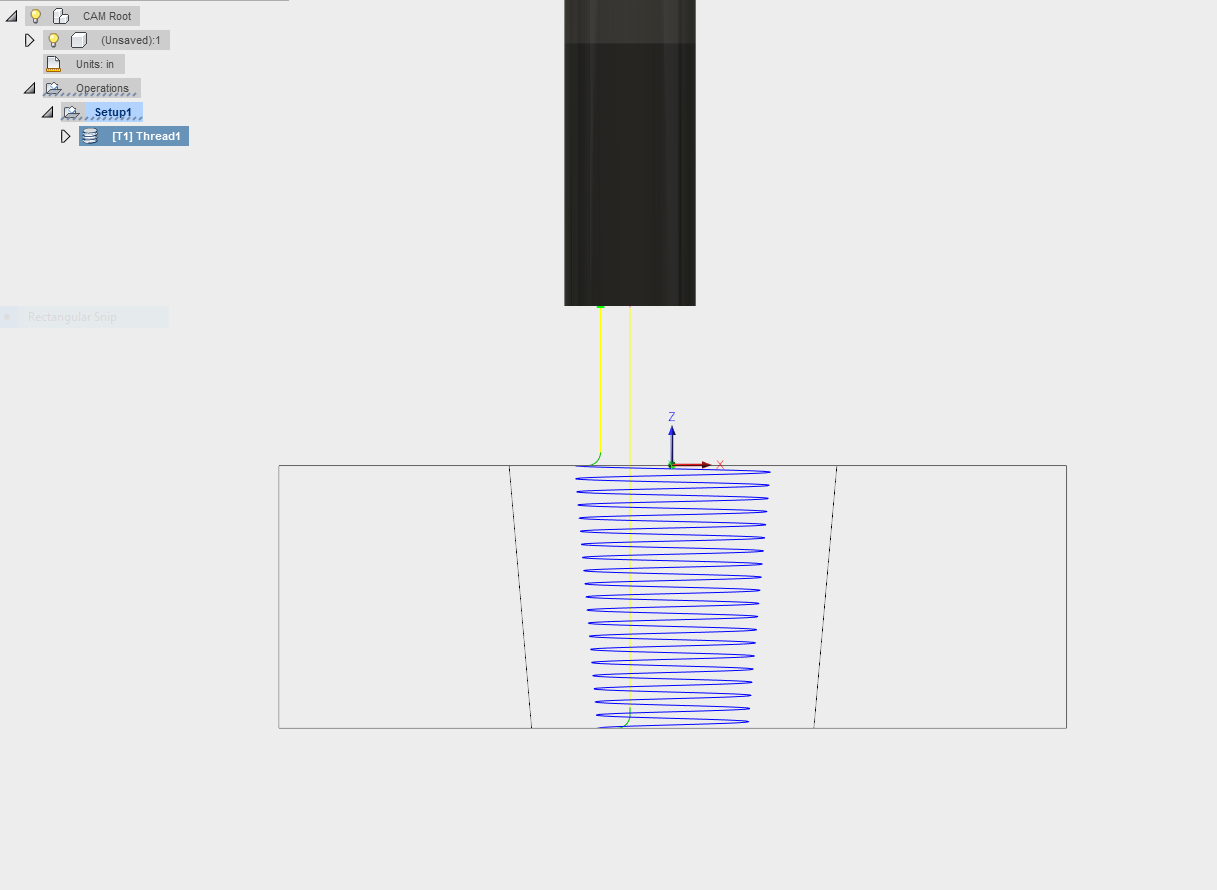

Then when thread milling it follows the taper
I wish it would do male threads as easily, maybe I just havent found it yet.
Sketch points where you want the holes
-Create hole
-Hole Tap type = Taper tapped
-Thread type = NPT or whatever else.
Then when thread milling it follows the taper
I wish it would do male threads as easily, maybe I just havent found it yet.
DavidScott
Titanium
- Joined
- Jul 11, 2012
- Location
- Washington
That is new, when did it become available?
JP Machining
Stainless
- Joined
- Jul 15, 2006
- Location
- Wisconsin
Not sure, has been several months though.
Took me awhile to find it as I usually drew holes and cut extrude, then use thread command to add threads, but if you use the points on a sketch and the hole command it does counterbores and all that jazz in one step, plus handles NPT.
Took me awhile to find it as I usually drew holes and cut extrude, then use thread command to add threads, but if you use the points on a sketch and the hole command it does counterbores and all that jazz in one step, plus handles NPT.
