BIAX 7EL 220v Replacement Motor?

JohnAU · Dec 15, 2022

Hello, I have an older Biax 7EL 110v scraper and I was wondering if anyone knows if there is another tool with 220v motor that can replace the current one? I currently run it off a 220v to 110v transformer but I am looking at options as I can’t seem to find replacement brushes and I would like to have a speed controller.

Peter. · Dec 15, 2022

Brushes: https://www.practicalmachinist.com/forum/threads/blue-biax-brushes.333069/

CARBON BRUSHES for Narex: ESV, ESO10, EV 108D, EV406, EV408, EV410, EV710 E126 | eBay

Always wear protective eyewear & gloves. Keep children away. CHECK YOUR SIZE THESE ARE SUITABLE FOR MANY MAKES AND MODELS.

www.ebay.co.uk

Speed control: https://www.practicalmachinist.com/forum/threads/retro-fit-speed-control-to-old-biax-7-el.290342/

Or you could just do what many do and stick a speed controller in line with the power lead on an extension.

Luke Rickert · Dec 15, 2022

It is probably an off the shelf motor from another tool (as that is Biax's way) but one from so long ago finding it is going to be difficult I think. You might get lucky with a google image search/google lens but chances are you need to do a retrofit of some sort. (I would cut off the pinion and graft it onto a new motor)

Here is one example. https://www.practicalmachinist.com/forum/threads/cordless-blue-biax-retro-fit.407935/ cordless would be nice, although I would use a higher quality motor.

CharlyDE · Dec 15, 2022

Luke Rickert said:
I would cut off the pinion and graft it onto a new motor

That's a good idea, because there is definitely no motor known that replaces the Biax 7EL motor directly.
There is a thread (german language) with pictures that shows how to do:

Biax 7 EL - Neuer Motor? - Seite 2 - Zerspanungsbude

Addendum:
This brush replaces the original one of the Biax 7/EL motor:

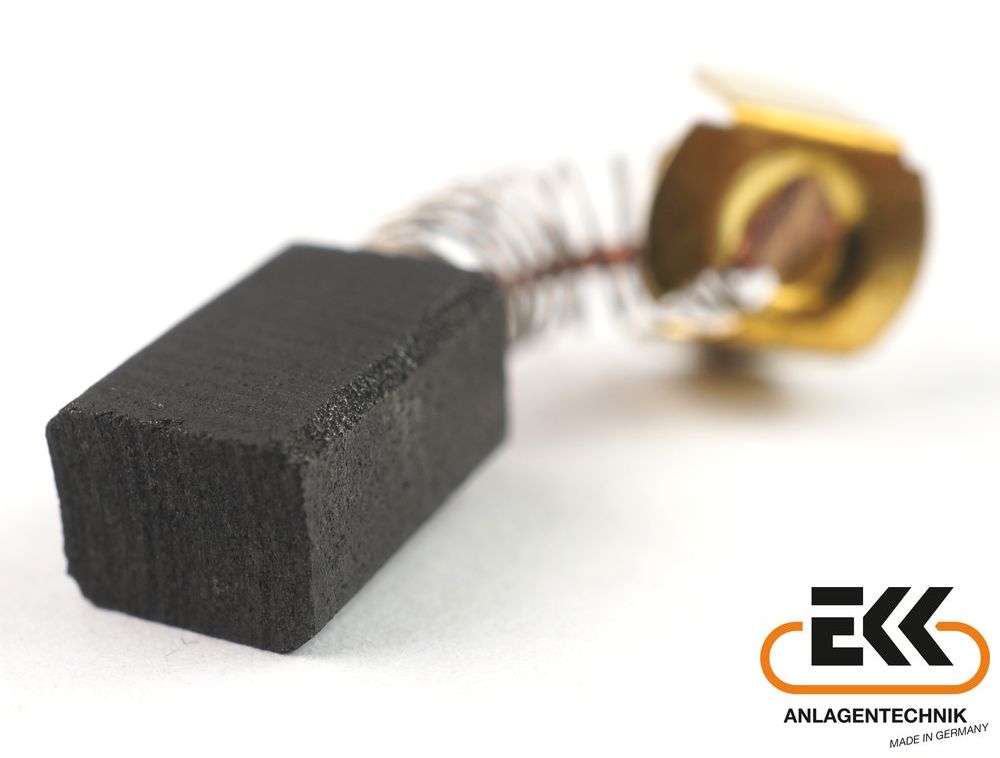

Kleinkohle KK 486

6,4 x 5 x 11 mm Kabel, Feder, Bügel

www.ekk-anlagentechnik.de

KK 486 Kohlebürste 5 x 6,4 x 11 mm

Kleinkohle 5 x 6,4 x 11 mm Kabel, Feder und Bügel

www.shop-traub.de

Be careful to choose a speed controler that won't damage the windings of the old motor.

Peter. · Dec 15, 2022

Luke Rickert said:
It is probably an off the shelf motor from another tool (as that is Biax's way) but one from so long ago finding it is going to be difficult I think. You might get lucky with a google image search/google lens but chances are you need to do a retrofit of some sort. (I would cut off the pinion and graft it onto a new motor)

Here is one example. https://www.practicalmachinist.com/forum/threads/cordless-blue-biax-retro-fit.407935/ cordless would be nice, although I would use a higher quality motor.

Which is what I did do in fact. I have updated the thread.

JohnAU · Dec 16, 2022

Thanks for the replies, I think I’ll work with the current 110v motor for now. If it ever dies then I might look at retrofitting a new one.
